Every CNC machinist knows that dreadful sound. You are turning a steel part with a keyway or a square bar, and—CLACK! Another expensive name-brand insert just chipped.
Premium brands like Sandvik or Kennametal make great tools, but their high prices eat up your hard-earned profit. What if you could get the same heavy-duty toughness and reliable chip-breaking at half the price?
That is exactly why we designed the TNMG160408-QM turning insert.
It is engineered as a high-toughness, budget-friendly alternative for steel machining below 45 HRC. Whether you are dealing with ugly interrupted cuts or trying to stop bird-nesting chips, this universal insert gets the job done without breaking your bank.
🛑 The Problem: High Tooling Costs & Constant Chipping
Running a machine shop today is tough. Material and labor costs are going up, while profit margins are shrinking. If you are still buying $15 premium inserts for everyday steel turning, you are spending way too much.
The risk is even higher during heavy interrupted cutting. When your tool hits a keyway, a slot, or a rough forged surface, it takes a violent beating.
-
- Standard inserts often crack after just a few passes.
- When an expensive insert dies early, your machine stops, your operator waits, and your money goes down the drain.
🛠️ The Solution: Why TNMG160408-QM Matches the Big Brands
Can a cost-effective insert really fight head-to-head with premium premium grades? Yes, it can. It all comes down to two things: Raw toughness and smart shape design.
1. Built Like a Shock Absorber (High Toughness)
Instead of using a brittle, ultra-hard carbide, our insert features a highly elastic, high-toughness matrix. When it hits a keyway at high speed, the insert absorbs the impact like a car’s suspension on a bumpy road. It bends microscopically instead of cracking.
2. The Smart QM Geometry (Low Resistance & Great Chip Control)

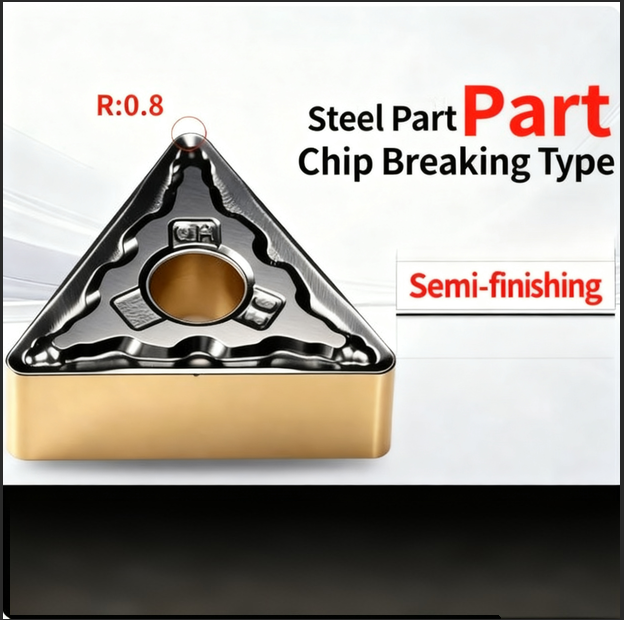

Take a look at the unique QM groove design on the top face of our insert. It is specifically tuned for semi-finishing (半精加工):
[0.8mm Nose Radius] --> Strong edge + Smooth surface finish
\ /
\____/ --> Sharp Rake Angle (Cuts easily, reduces heat)
| |
| QM | --> Curved Wall (Snaps chips instantly)
-
- Smooth Cuts: The sharp angle slices through steel like butter. Low cutting resistance means less vibration, less chatter, and less stress on your lathe’s spindle.
- No More Bird-Nesting: Tired of long, stringy steel chips wrapping around your chuck? The QM wall forces the chip to curl tightly and snap into perfect little “C” shapes.
🌍 One Insert for All Your Everyday Steels
Premium brands want you to buy a different insert for every single metal grade. That just bloats your tool crib inventory.
The TNMG160408-QM is a universal workhorse. If your material is under 45 HRC, this single insert replaces them all:
-
- Mild / Carbon Steel: AISI 1045, A36, Q235, 45# Steel
- Chromium Steel: AISI 5140, 40Cr, 20Cr
- Alloy Steel: AISI 4140, 4135, 35CrMo
- Pre-hardened Mold & Bearing Steel
🎥 Watch It Work: Check out the video below. See how our insert smoothly cuts through heavy interruptions on raw steel without a single chip on the edge!
💡 Pro Tip for Harder Steels:
While the QM geometry is your absolute go-to workhorse for general semi-finishing under 45 HRC, what if you are dealing with smaller corner radii (R0.4) or tougher quenched steels up to HRC 50°?
While the QM geometry is your absolute go-to workhorse for general semi-finishing under 45 HRC, what if you are dealing with smaller corner radii (R0.4) or tougher quenched steels up to HRC 50°?
We’ve got you covered. For specialized steel grooving and lighter finishing cuts under violent impacts, check out our companion guide:
🔗 Why TNMG160404L-VF is the Smartest Alternative to Premium European & American Brands to see how it pairs with our QM insert to optimize your whole shop floor!
🔗 Why TNMG160404L-VF is the Smartest Alternative to Premium European & American Brands to see how it pairs with our QM insert to optimize your whole shop floor!
💬 Quick FAQ: Everything You Need to Know
Q1: Will this insert fit my current tool holders?
Yes, 100%. Our inserts are made strictly to standard ISO/ANSI sizes. If you currently use standard turning tool holders like MTJNR/L or WTJNR/L, our TNMG160408 will drop right in. No need to buy new hardware.
Q2: Is the tool life really as good as Sandvik?
In a perfect, smooth test cut, a $15 big-brand insert might last 10% longer. But in real-world interrupted cutting, the gap disappears because the biggest enemy is sudden chipping, not slow wear. Since our insert focuses heavily on impact toughness, it stops premature cracking. Considering the massive price difference, your cost-per-part will drop drastically.
Q3: What speeds and feeds should I run?
For standard steel under 45 HRC, we recommend starting here:
-
- Cutting Speed (Vc): 140 – 220 m/min (460 – 720 SFM)
- Feed Rate (f): 0.15 – 0.35 mm/rev (0.006 – 0.014 IPR)
- Depth of Cut (ap): 1.0 – 3.5 mm
- Pro tip: If your interruption is very violent, drop your speed by 15% but keep the feed steady to let the chip-breaker do its job.
Q4: How does “Low Cutting Resistance” help my shop?
Heavy cutting friction creates intense heat and forces the metal to push back against the machine. Our QM groove slices metal easily. This prevents chatter marks on your parts and is incredibly helpful if you are running older, lower-horsepower CNC lathes.
Q5: Can I use this for heavy roughing or super-fine finishing?
The QM slot is the absolute master of semi-finishing (medium depth and medium speed). It can handle light roughing up to a 4mm depth of cut. However, if you need a mirror-like finish with a super light cut (under 0.5mm), we recommend using our specialized finishing slots (like QF or SF) for better chip control.
📉 Bottom Line: Save 40%+ on Your Tooling Bill
You don’t need to pay a massive brand premium just to get reliable, chip-free steel turning. The TNMG160408-QM gives you the raw toughness, smooth chip control, and versatility your shop needs—while cutting your monthly tool invoices by 40% or more.
👉 Want to test it yourself? [Click here to talk to our team] to get a free sample pack or a quick cross-reference chart for your shop!
🎁 Challenge Our Insert in Your Shop (Free Test Samples.
Seeing is believing. If you have an ugly interrupted steel turning job coming up and want to test the QM geometry yourself, let us know! Leave a comment below with your country and the material you are cutting (e.g., “USA, machining 4140 steel”), or simply ask for a sample.
We will reach out via email to arrange a free sample pack for your CNC lathe. No strings attached! 👇
